Accessories for IR-lamps





Accessories for IR-lamps

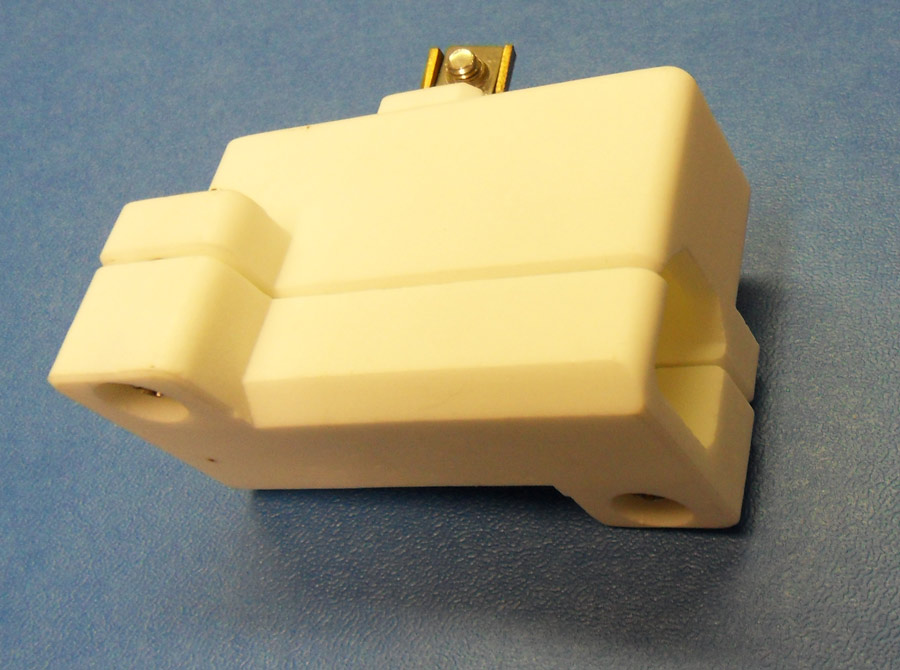

B1-Holder

B1-Holder

Holder for Twintube-IR-lamps

Holder for Twintube-IR-lamps

IR Lamp in a IRZ-reflector

IR Lamp in a IRZ-reflector



Holders for Singletube and Twintube IR-lampp

TypAnwendungLxBxH / mm
B1-Holder IC-8001For IR-lamps with caps, Bf, B20 ( Z, SK15)11 x 12 x 33
23x11-Holder IC-8009For twintube IR-lamps with the cross-section 23x11mm, or
for singletube IR-lamps with min 15mm diameter
24 x 10 x 54
34x15-Holder IC-8013

For Twintube IR-lamps with cross-scetion 24x15mm, or
for singletube IR-lamps with min 20mm diameter
34x15mm, oder
auch für Rundrohr-Strahler ab 20mm Rohrdurchmesser
35 x 10 x 63

IRZ Reflectors

IRZ 500

IRZ 500

IRZ 1000

IRZ 1000

TypeIRZE 500IRZE 1000
Outer dmiensions LxBxH/ mm at 20°C220x68x50350x68x50
Heat-Lg /length of reflector / mm165/170290/300
Fitting at 2x M4x13mma=120mma=250mm
IR-Lamp max. 240V,
with or without reflector
500W,
max 1600W with cooling
1000W
Max 2000W with cooling


Order accessories for IR-lamps

  • different Holders
  • different Types of reflectors

If you need further product-information, your inquiry by our contact-mail link would be appreciated.
