Special IR-lamps

Infrared-Spot-Lamps

Infrared-Heat-processes are applied mainly in flood effect, but increasing focused too. Therefor our IR-lamps with spot-effects are well appropriate products.

Power	Voltage	Heat-Lg/ OAL	Cap/ Burn.pos.	Dimen sions in mm	Spec. Power in W/cm	Product code	Colourtemp. in Kelvin / lifetime in h	Reflector	Spot-diameter / distance in mm
150W	17V	20 / 50mm	GX 5,3	50/35		14516	3100K 200h*	Silver, total	20 / 50

* average lifetime, base temperature max 200°C

Power	Voltage	Heat-Lg/ OAL	Cap/ Burn.pos. in mm	Window in mm	Spec. Power W/cm	IC-Type	Colourtemp. in Kelvin/ lifetime	Tube / Refl. coating	Spot-diameter / distance in mm
400W	115V	20 / 72mm	23x11	20x20 Quadrat	200	IC-2102	2400K 1000h*	Ceramic	40/ 25
400W	115V	20 / 72mm	23x11	20mm Rund	200	IC-2103	2400K 1000h*	Ceramic	40/25

* average lifetime, base temperature max 350°C

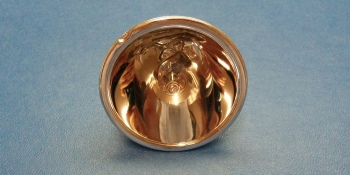

14516-IR-Spot-Lamp

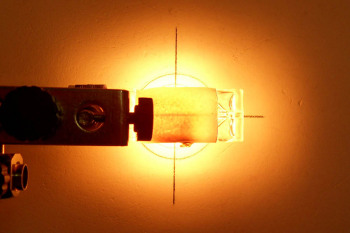

IC-2102 20x20-Infrared-Spot-Lamp

IC-2103 20mm- Infrared-Spot-Lamp

Square holder IC-8011 in flexible combination

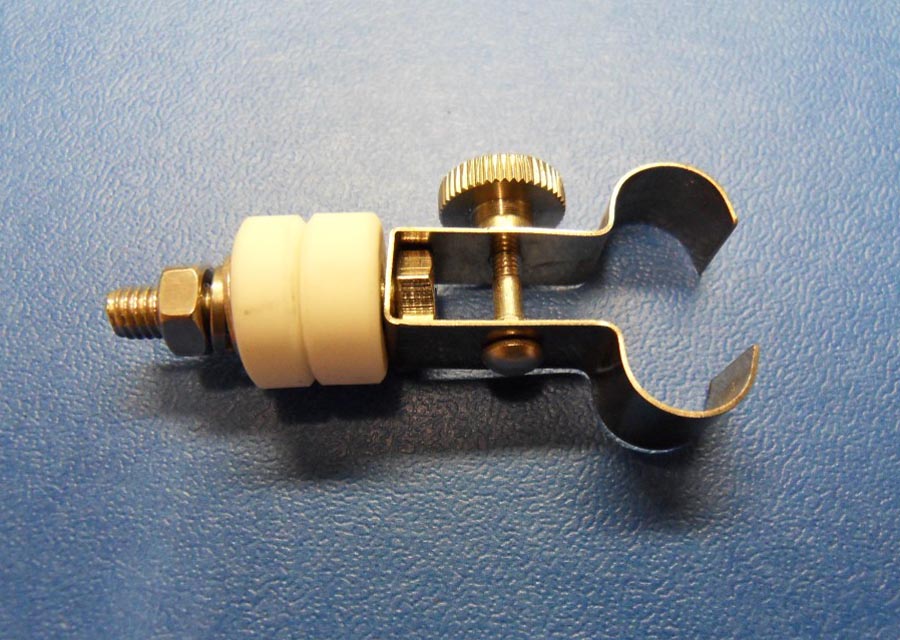

Holder IC-8009

Please note: Photos have been done at lower lamp voltage

U-Shaped-Lamps

For industrial heat processes

with high power on short lines
where no space is available for linear IR-lamps with caps on both ends
high process-temperatures

Our –U-shape lamps are best solutions.
The temperature sensitive processes are by this lamp-design outside of the hot process.

Power in W	Voltage in Volt	Heat-Lg/ OAL in mm	Spec. Power in W/cm	IC-Type	Colourtemp./ Average lifetime in Kelvin / h	Refl. coating
1200	400	240/262	50	IC-7306	2800K /2500	no
1200	400	240/262	50	IC-7307	2800K / 2500	white
1600	400	240/262	67	IC-7310	2800K / 2500	no
2500	400	240/262	104	IC-7311	2800K / 2500	no
3500	400	240/262	146	IC-7308	2800K / 2000	no
4000	400	240/262	167	IC-7309	2800K / 2000	no
